Home LED Accessories LED Strip Light Dimmers & Switches


SWITCHES

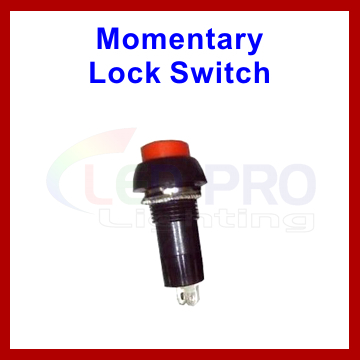

Momentary Lock Switch

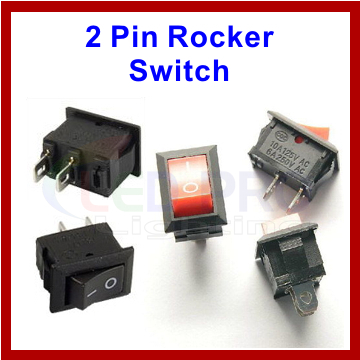

2 Pin Rocker Switch


$1.00
$1.00
$5.00
Momentary
Lock Switch
2 Pin
Rocker Switch

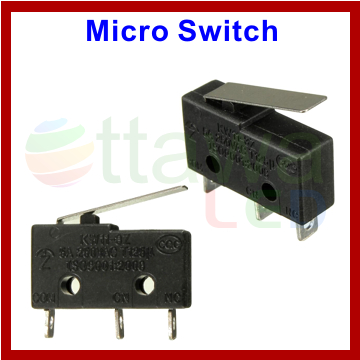

Micro Cupboard
Switch




- Rating: 1.5A 125V
- Type: SPST NO (normal open)
- Terminal: 2-Pin
  (OFF-ON Momentary)
- Color: Red
- Rating: 10A 125V
- Poles: SPST
  (Single Pole Single Throw)
- Terminal: 2-Pin (ON-OFF)
- Dimension: 26 x 20 x 15mm
- 5A
- Multifunction, sensitive
- Long lasting, durable
- Safe and reliable
- Micro Switch used for:
   - cupboard drawer
   - automobile,
   - communications equipment

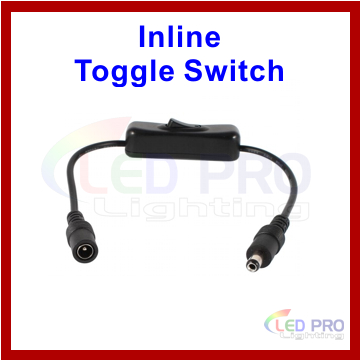

Inline Toggle Switch






$10.00

Inline
Toggle Switch





- Input Voltage: DC12V
- Output Current: 2A
- Dimension: 61 x 19 x 19mm
- Connection: Male to Female
  barrel jack (5.5 x 2.1mm)
- Colour: White or Black



INLINE DIMMERS

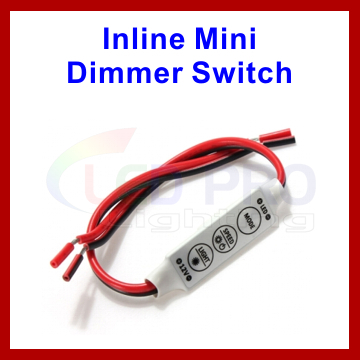

Mini 3 Button Inline Dimmer Switch

Inline Dimmer Switch Inline Touch Dimmer Switch


$4.99
$14.99
$14.99
Mini 3 Button
Inline Dimmer Switch

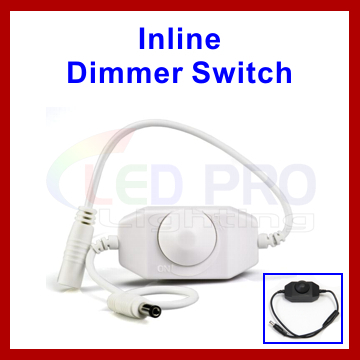

Inline
Dimmer Switch

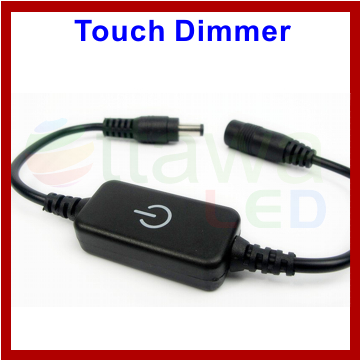

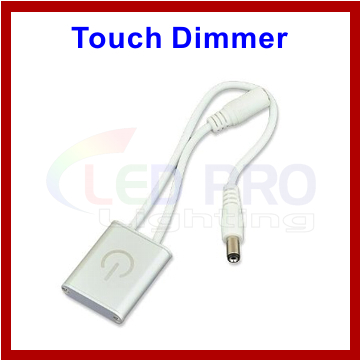

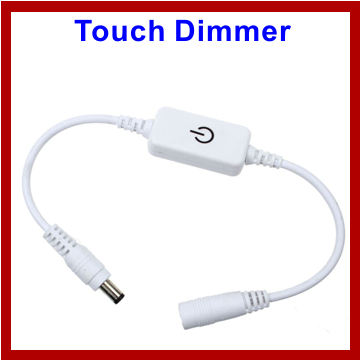

Inline Touch
Dimmer Switch

- Connection mode:
  Common Anode(+)
- Input Voltage: DC12V / 24V
- Output Current: 2A/CH
- Dimension: 27 x 12 x 5mm

Operation:

Mode Button: 5 dynamic modes
Speed/Bright Button: Adjust speed or brightness.
Light Button: Switch to static light mode

- Input Voltage: DC12V / 24V
- Output Current: 2A
- Dimension: 89 x 59 x 58mm
- Connection: Male to Female
  barrel jack (5.5 x 2.1mm)
- Colour: White or Black
- Touch On / Off
- Touch for 5 seconds
  to de/increase brightness
- Input: DC12V / 24V
- Output current: 2A
- Connection: Male to Female
  barrel jack (5.5 x 2.1mm)
- Colour: Black & White

ROTARY DIMMERS

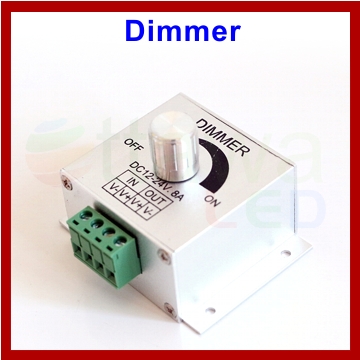

LED Adjustable Rotary Dimmer



$14.99
$24.99

8A
Rotary Dimmer

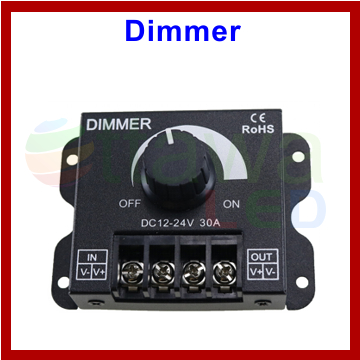

30A
Rotary Dimmer


- Input Voltage: DC12V / 24V
- Output Current: 8A (10A max)
- Work temperature: -20-60
- Brightness: from 0% to 100
- Size: 89 x 59 x 35mm
- Color: Beige / Black
- Input Voltage: DC12V / 24V
- Output: 1 Channel 360W
- Dimension: 85 x 65 x 20mm
- Connection: Male to Female
  barrel jack (5.5 x 2.1mm)
- Colour: Black
- Working Temperature: -20~60C


REMOTE DIMMERS

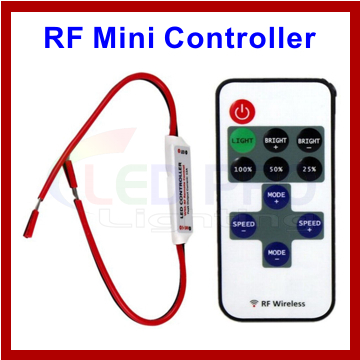

Mini RF Remote Dimmer

$14.99
$19.99

Mini RF 6A
Remote Dimmer

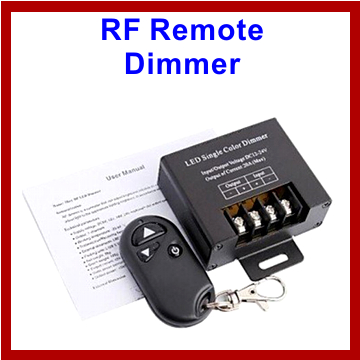

RF 20A
Remote Dimmer


- Dynamic mode: 8 modes
- Dynamic speed level: 10 levels
- Lighting brightness level :
  10 levels
- Smooth dimmer effect: Yes
- Supply voltage: DC 5~24V
- Output current : Max 6A
- Remote control mode:
  RF Wireless
- Remote frequency: 433.92MHz
- Working temperature:
   -20-60 degree
- Supply voltage: 12-24V DC
- External Size:
  L68W60H35mm
- Output: 1 Channel
- Output current:
   12V Max 20A; 24V Max 10A
- Max Power output: 240 W
- Remote control mode:
  RF Wireless


Sensors





$9.99
$14.99

DC12V
Photo Sensor

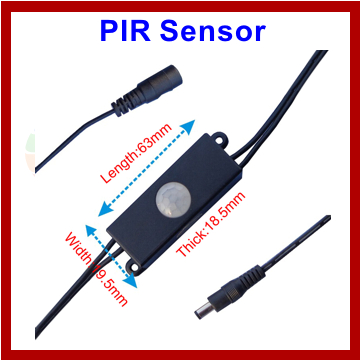

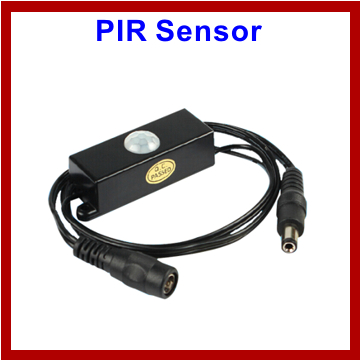

PIR
Passive Infrared Sensor


  - Working voltage: 5V~24VDC
- Output current: 4A
- Load power:10W
- Delay off time: 15s
- Induction angle: 120 degree
- Sensing distance: 3 meters
- Working temp:-2 0'C/ +50'C
- Sensor size:
  63x19.5x18.5mm(L*W*T)


CCT IR CONTROLLER





$14.99
$29.99

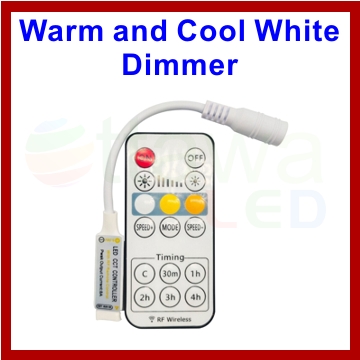

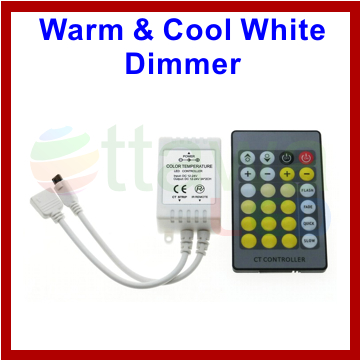

IR CCT Temperature
Remote & Control
RF CCT Temperature
Remote & Control


- Use for Double Color
  LED Strips White + Warm White
- Supply voltage: DC12-24V
- Size: 61*35*22mm
- Connecting mode:
  Common anode
- Dimming and color mix
- ON/OFF Control

- Use for Double Color
  LED Strips White + Warm White
- 2.4G RF Remote Control
- Supply voltage: DC12-24V
- Remote size: 110*52*20mm
- Output: 12A Max
- Power: AAA battery*2pcs
- Material: ABS
- Fabrication:
  Multicolor printing & UV varnish
- Controller Size: 85*45*23mm
- Output connection:
   Common anode
- Telecontrol distance: 20 meters


WALL DIMMER





$29.99
$24.99

Touch Control
Wall Dimmer
IR Remote
Wall Dimmer


- Dynamic mode: 8 modes
- Brightness levels: 10
- Smooth dimmer effect: Yes
- Supply voltage: DC 5~24V
- Output current : Max 12A
- Remote control mode:
  RF Wireless
- Remote frequency: 433.92MHz
- Supply voltage DC 12V
- Output channel: 1 channel
- Static power consumption <1W
- Output current 8A
- Output power 12V < 96W
- Output current: 1A
- Control Mode:
  Manually and IR remote
- 0-100% dimmable
  brightness, no twinkling
- Working temperature:
  -20-60C optional
- Dimension: L87*W87*H53 mm
