Home LED Strip Lights LED Modules

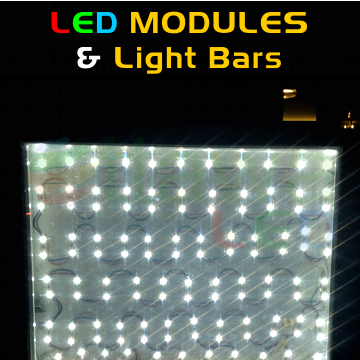

Application

Indoor lighting and decoration

Architecture lighting

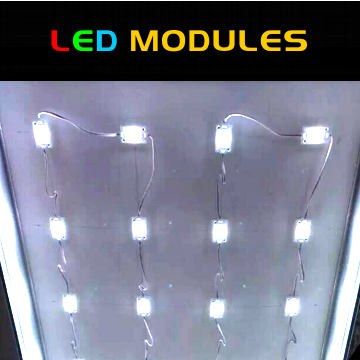

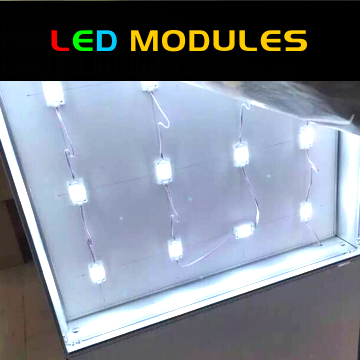

Advertising light box backlighting

Sign board back lighting

Commercial sign backlighting

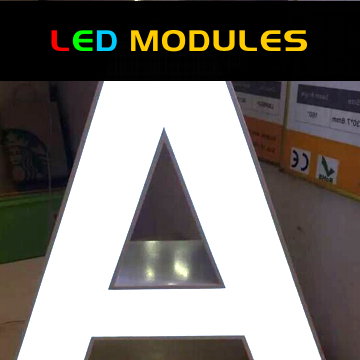

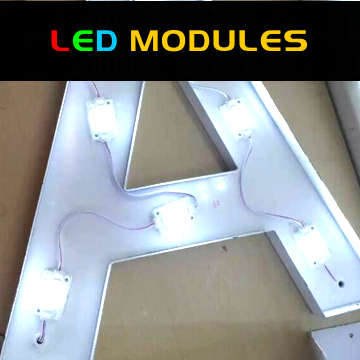

Channel letters

Edge lighting

Poster light boxes

Other indoor and outdoor displays

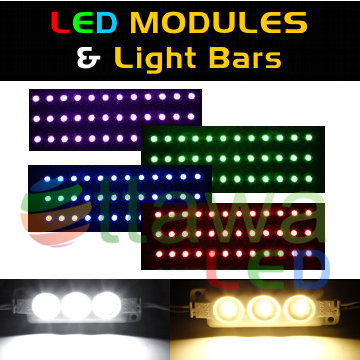

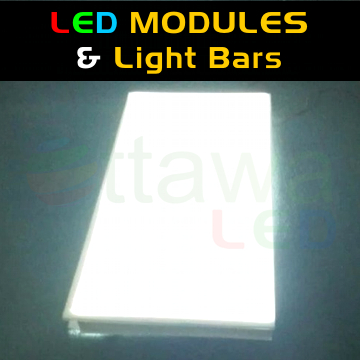

LED Modules
  WS2811 Pixel Module $39.99
Specification:
Working voltage DC12V
Working current 60ma
Working temperature 40C- 60
IP grade IP68
Dimension 12mm
LED type 1pcs
IC type WS2811 IC
LED qty 1pcs
Viewing angle >= 120
Cable length 6-8CM
Wire color red/white/blue wire
Package 50pcs String
Requires WS2811 Controller
  Power supply

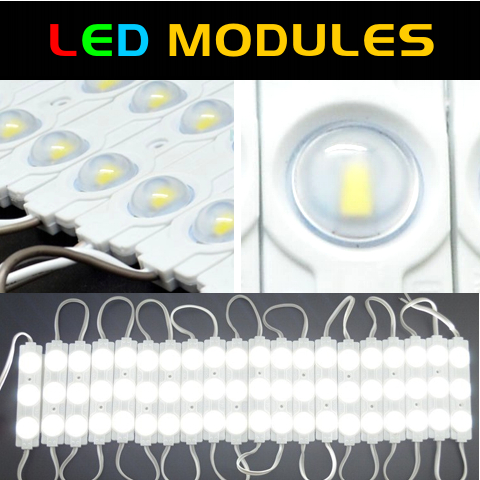

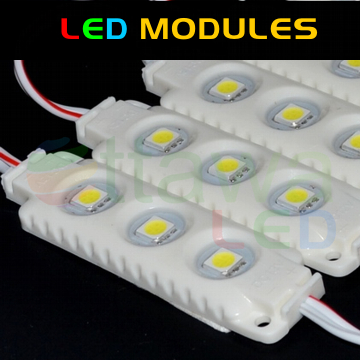

  5050 Cool White Injection Module IP65 $1.00
Specification:
LED Type 5050 SMD
LEDs Qty 3 / Module
Colour Cool White
Dimmable Yes
Beam Angle 120
Power 72W / Module
Voltage DC12V Constant Voltage
Luminous Output White 18-20LM
Body Material ABS Anti-static
Dimensions 78mm x 14mm x 6mm
IP Rating IP65 (Water / Dust Resistant)
Standards CE, RoHS
Requires Power supply

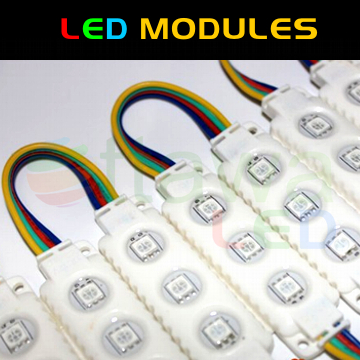

  5050 RGB Injection Module IP65 $1.00
Specification:
LED Type 5050 SMD
LEDs Qty 3 / Module
Colour R/G/B 5-6LM
Dimmable Yes
Beam Angle 120
Power 72W / Module
Voltage DC12V Constant Voltage
Luminous Output White 18-20LM
Body Material ABS Anti-static
Dimensions 78mm x 14mm x 6mm
IP Rating IP65 (Water / Dust Resistant)
Standards CE, RoHS
Requires Power supply
  RGB controller

5050 1.5W Injection Module IP65 $2.50
Specification:
LED Type 5050 SMD
LEDs Qty 1 / Module
Colour Cool / Warm White
Dimmable Yes
Beam Angle 160
Power 1.5W / Module
Voltage DC12V Constant Voltage
Luminous Output 120LM
Body Material Aluminum PCB / PVC Cover
Dimensions 44mm x 28mm x 9mm
IP Rating IP65 (Water / Dust Resistant)
Standards CE, RoHS
Requires Power supply

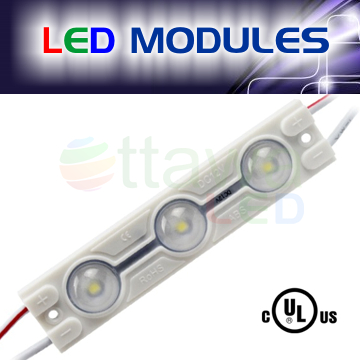

5730 High Power cUL Listed $1.50
Specification:
LED Type 5730 SMD
LEDs Qty 3 / Module
Colour Cool / Warm White / RGB
Dimmable Yes
Beam Angle 160
Power 1.2W / Module
Voltage DC12V Constant Voltage
Luminous Output 110-120LM
Body Material ABS Anti-static
Dimensions 68mm x 15mm x 4.8mm
IP Rating IP65 (Water / Dust Resistant)
Standards cUL, CE, RoHS
Requires Power supply

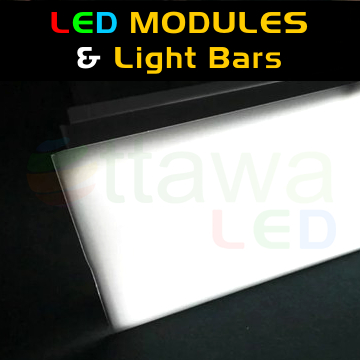

LED Light Bars

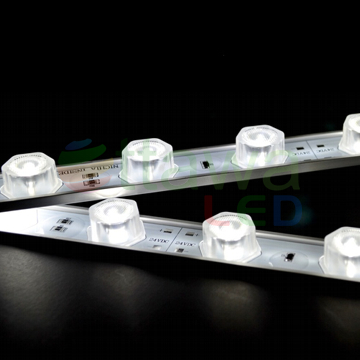

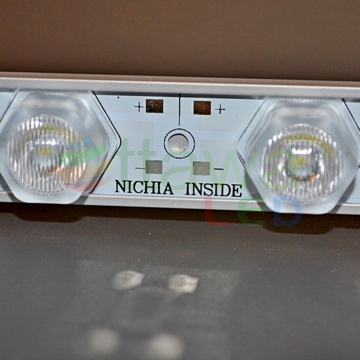

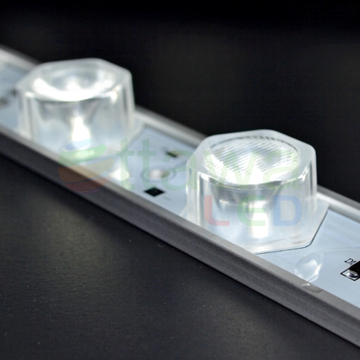

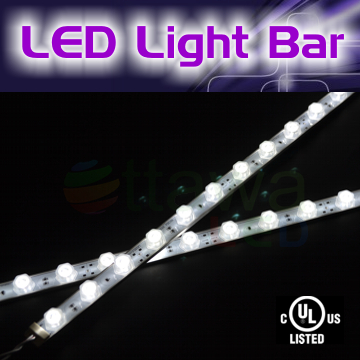

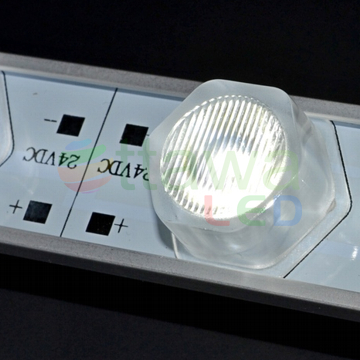

  LED Edge Light Bar $29.99
Specification:
LED Type Nichia
LEDs Qty 12
Colour Pure White (6000-7000K)
Dimmable Yes
Beam Angle 56*12
Power 1W / Module
Voltage DC24V Constant Voltage
Luminous Output 1440LM
Emission depth 50mm - 100mm
Body Material Aluminum
Dimensions 500mm x 19mm x 11mm
IP Rating IP65 (Water / Dust Resistant)
Fire retardant (V0 class)
Standards cUL, CE, RoHS
Requires Power supply
