The information contained on ottawaled.com is not intended to be used as professional advice. Always consult a professional electrician before working with electricity and regarding local building codes.

For greater efficiency and longer life choose a power
supply that is 20% greater in capacity than the total load.
ie., If total load is 100 watts choose a 120 watt power supply
(Volts x Amp = Watt) 12V 6A power supply = 72W




For an LED driver not listed below,
please call 343 777 0113

DC12V
Constant Voltage (CV)

Desktop
- Indoor use only

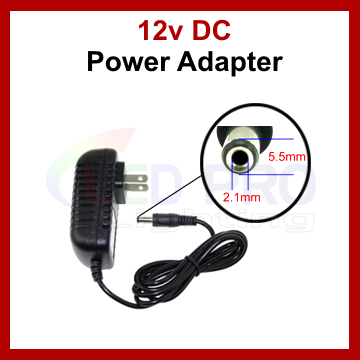

DC 12V 2A Power Supply UL/cUL Listed
DC 12V 2A 24W
Power Adapter
- Enclosed indoor use only
$18.99
Specifications:

- Input: AC 100 - 120V (50/60Hz)
- Output: 12V
- Current: 2A
- Power: 24W
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL Listed, CE, RoHS

DC 12V 2A Power Supply UL/cUL Listed
DC 12V 3A 36W
Power Adapter
- Enclosed indoor use only
$22.99
Specifications:

- Input: AC 100 - 120V (50/60Hz)
- Output: 12V
- Current: 3A
- Power: 36W
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL Listed, CE, RoHS

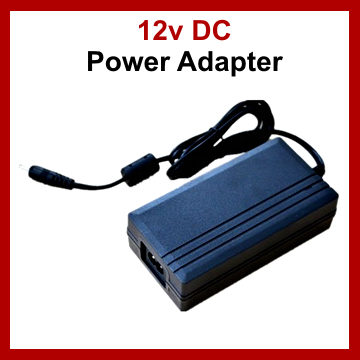

LED Driver Power Supply DC 12V 6A 72W cUL Listed - Ottawa LED
DC 12V 6A 72W
Desktop Power Adapter
- Enclosed indoor use only
$34.99
Specifications:

- Model: SMT-012-072VP
- Input: 90-264VAC (50/60Hz)
- Output: 12V
- Current: 6A
- Power: 72W
- Protection:
  Overload, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL Listed, CE, RoHS

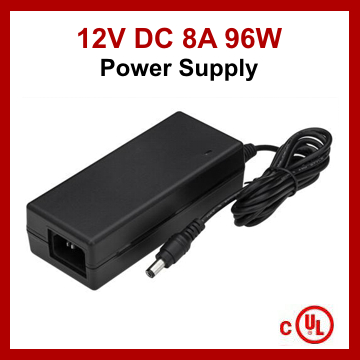

LED Driver Power Supply DC 12V 8A 96W cUL Listed - Ottawa LED
DC 12V 7.5A 90W
Desktop Power Adapter
- Enclosed indoor use only
$44.99
Specifications:

- Model: ZF120A-1208000
- Input: AC 120V (50/60Hz)
- Output: 12V
- Current: 7.5A
- Power: 90W
- Protection:
  Over loading, over voltage, temperature, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL Listed, CE, RoHS

DC12V (Hardwire option)
- Indoor use only

DC 12V (Optional hard wire)
Constant Voltage Driver

- Enclosed indoor use only
- Input: AC 100 - 240V (47-63Hz)
- Protection:
  Short circuit / Overload / Over temperature
- IP20
- Certificate: RU CE
- Includes: 2 Prong US plug; 1.2m
Specifications:
- Model: ZF120A-1201000
- Output: 12V
- Current: 1A
- Power: 12W
- Size:78*38*23mm
$14.99



Specifications:
- Model: ZF120A-1202000
- Output: 12V
- Current: 2A
- Power: 24W
- Size:95*44*24mm
$19.99



Specifications:
- Model: ZF120A-1203000
- Output: 12V
- Current: 3A
- Power: 36W
- Size:105*48*32mm
$26.99



Specifications:
- Model: ZF120A-1204000
- Output: 12V
- Current: 4A
- Power: 48W
- Size:120*49*32mm
$31.99



Industrial Aluminium Enclosure Hardwired
- Indoor use only

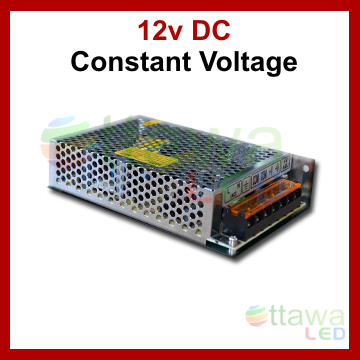

LED Driver Power Supply DC 12V 10A 120W cUL Listed - Ottawa LED

This is a hardwired 120V
power supply and should only be installed by a qualified professional.

DC 12V 10A 120W
Constant Voltage Power Supply
- Enclosed indoor use only
$49.99
Specifications:

- Model: SMT-012-120SA
- Hardwire
- Input: AC 100 - 240V (47-63Hz)
- Output: 12V
- Current: 10A
- Power: 120W
- High efficiency up to 82%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 199x98x38mm

LED Driver Power Supply DC 12V 16.6A 200W cUL Listed - Ottawa LED

This is a hardwired 120V
power supply and should only be installed by a qualified professional.

DC 12V 16.6A 200W
Constant Voltage Power Supply
- Enclosed indoor use only
$64.99
Specifications:

- Model: SMT-012-200SA
- Hardwire
- Input: AC 100 - 120V (50/60Hz)
- Output: 12V
- Current: 16.6A
- Power: 200W
- High efficiency up to 83%
- 85~132VAC or 176~264VAC input
  (selectable by switch)
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 199x98x38mm

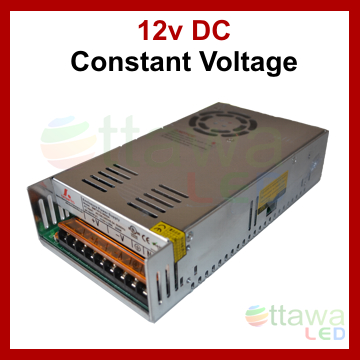

LED Driver Power Supply DC 12V 29A 350W cUL Listed - Ottawa LED

This is a hardwired 120V
power supply and should only be installed by a qualified professional.

DC 12V 29A 350W
Constant Voltage Power Supply
- Enclosed indoor use only
$84.99
Specifications:

- Model: SMT-012-350SA
- Hardwire
- Input: AC 100 - 120V (50/60Hz)
- Output: 12V
- Current: 29A
- Power: 350W
- High efficiency up to 83%
- 85~132VAC or 176~264VAC input
  (selectable by switch)
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 235x124x65mm
 IP67 Outdoor Enclosure
- Indoor and outdoor use

LED Driver Constant Voltage Power Supply 12V 1.5A 18W IP67 UL Listed

DC 12V 1.5A 18W
Constant Voltage Driver
$29.99
Specifications:

- Model: SMT-012-018VW
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current:1.5
- Power: 18W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 82%
- Protection: Short circuit / Overload / Over voltage
- Cooling by free air convection
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 1302920 mm

LED Driver Constant Voltage Power Supply 12V 3A 36W IP67 UL Listed

DC 12V 3A 36W $39.99
Specifications:

- Model: SMT-012-036VW
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current: 3A
- Power: 36W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 84%
- Cooling by free air convection
- Protection: Short circuit / Overload / Over voltage
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 1822920mm

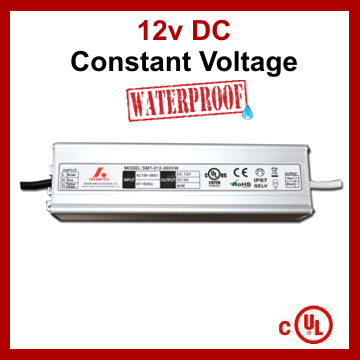

LED Driver Constant Voltage Power Supply 12V 5A 60W IP67 UL Listed

DC 12V 5A 60W $44.99
Specifications:

- Model: SMT-012-060VW
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current: 5A
- Power: 60W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 84%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 190x48x34

LED Driver Constant Voltage Power Supply 12V 5A 60W IP67 UL Listed

DC 12V 7.5A 90W $59.99
Specifications:

- Model: SMT-012-090VW
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current: 7.5
- Power: 90W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 83%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 200x68x53 mm

LED Driver Constant Voltage Power Supply 12V 5A 60W IP67 UL Listed

DC 12V 10A 120W $64.99
Specifications:

- Model: SMT-012-120VW
- Hardwire
- Input: AC 90-135v AC / 47-63HZ
- Output: 12V
- Current: 10A
- Power: 120W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 82%
- Cooling by free air convection
- Protection:
  Over load, over voltage, over current
- 100% full load burn-in test
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 242x68x53mm

LED Driver Constant Voltage Power Supply 12V 5A 60W IP67 UL Listed

DC 12V 12.5A 150W $79.99
Specifications:

- Model: SMT-012-150VW
- Hardwire
- Input: AC 90-135V AC / 47-63HZ
- Output: 12V
- Current: 12.5A
- Power: 150W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 84%
- Cooling by free air convection
- Protection:
  Over load, over voltage, over current
- 100% full load burn-in test
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: :242x68x53

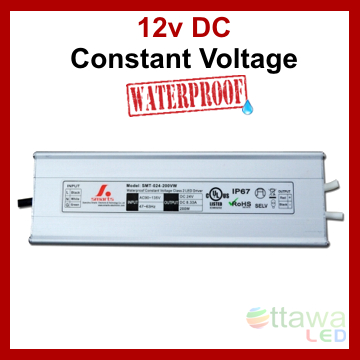

LED Driver Constant Voltage Power Supply 12V 16.5A 200W IP67 UL Listed

DC 12V 16.6A 200W $99.99
Specifications:

- Model: SMT-012-200VW
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- 2 Channel
- Current: 16.6A
- Power: 200W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 82%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 240x96x43 mm

LED Driver Constant Voltage Power Supply 12V 16.5A 200W IP67 UL Listed

DC 12V 20A 250W $124.99
Specifications:

- Model: SMT-012-250VW
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- 3 Channel
- Current: 20.8A
- Power: 250W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 84%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Product size: 240x96x43 mm
