Home LED Power Supply Triac Dimmable


The information contained on ottawaled.com is not intended to be used as professional advice. Always consult a professional electrician before working with electricity and regarding local building codes.


For greater efficiency and longer life choose a power
supply that is 20% greater in capacity than the total load.
ie., If total load is 100 watts choose a 120 watt power supply
(Volts x Amp = Watt) 12V 6A power supply = 72W


For an LED driver not listed below,
please call 343 777 0113


TRIAC Dimmable - Constant Voltage (CV)
- Indoor and outdoor use


This is a hard wired 120V power supply and should only be installed by a
qualified professional.

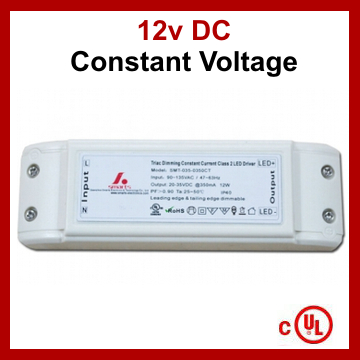

DC 12V 1A 12W
Triac Dimming Driver
Constant
Voltage
- Indoor use only
$34.99

Specifications:

- Model: SMT-012-012VT
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current: 1A
- Power: 12W
- Efficiency: 86%
- Cooling by free air convection
- Protection:
  Short circuit / Overload /  Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Safety Standards:
   IEC 61347 -2-11, IEC 61347 -1, IEC 60529
   Withstand Voltage: I/P-O/P: 3000KVAC
   Isolation Resistance: I/P-O/P:100M Ohms/500VDC
- Product size: 140x45x28 mm

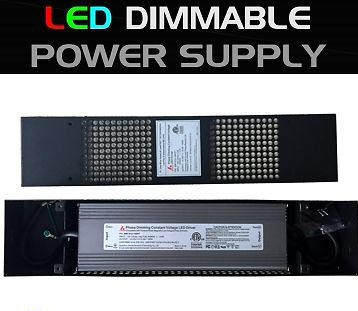

LED TRIAC Dimmable Driver Constant Voltage Power Supply 12V 8A 100W IP67 UL Listed

This is a hard wired 120V power supply and should only be installed by a qualified professional.

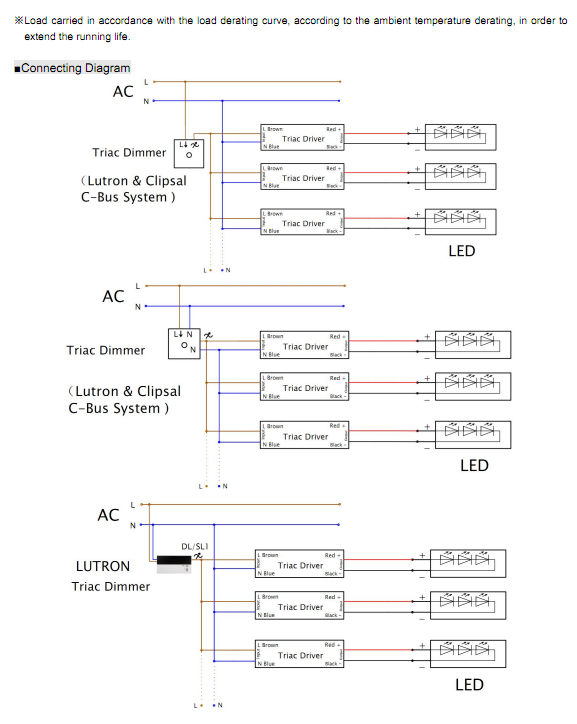

Connection Diagram

TRIAC Dimmable Power Supply Connection Diagram

DC 12V 5A 60W
Triac Dimming Driver
Constant
Voltage
$84.99

Specifications:

- Model: SMT-012-060VT
- Built-in PFC function, PF> 0.92
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current: 5A
- Power: 60W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 85%
- Cooling by free air convection
- Protection:
  Short circuit / Overload /  Over temperature
- UL/CUL (E365202), CE, RoHS, SELV
- Safety Standards:
   IEC 61347 -2-11, EN55015,EN61000
   Withstand Voltage : I/P-O/P: 3000KVAC
   Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- Product size: 210x68.543mm


LED TRIAC Dimmable Driver Constant Voltage Power Supply 12V 8A 100W IP67 UL Listed

This is a hard wired 120V power supply and should only be installed by a qualified professional.

Connection Diagram

TRIAC Dimmable Power Supply Connection Diagram

DC 12V 8A 96W
Triac Dimming Driver
Constant
Voltage cETL
$124.99

Includes junction box

Specifications:

- Model: SMT-012-100VT
- Built-in PFC function, PF> 0.92
- Hardwire
- Input: AC 100~265v AC / 47-63HZ
- Output: 12V
- Current: 8A
- Power: 96W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 87%
- Built-in PFC function, PF> 0.92
- Cooling by free air convection
- Protection:
  Short circuit / Over voltage /  Over heat
- UL/CUL (E365202), CE, RoHS, SELV
- Safety Standards:
   EN-60950-1, EN61347-1 EN61347-2-13
   Withstand Voltage : I/P-O/P:3.75KVAC I/P-FG:1.88KVAC
   O/P-FG:0.5KVAC
   Isolation Resistance : I/P-O/P: 100MΩ/500VDC/25c/70%RH
- EMC Emission: Compliance to EN55015,
  EN61000-3-2 (>50%load)
- EMC IMMUNITY: EN55015;
  EN61000-4-2,3,4,5,6,8,11,EN61547
  Alight industry level (surge4KV)
- Product size: 230x70x46mm



This is a hard wired 120V power supply and should only be installed by a qualified professional.

Connection Diagram

TRIAC Dimmable Power Supply Connection Diagram

DC 12V 12.5A 150W
Triac Dimming Driver
Constant
Voltage cETL
$154.99

Includes junction box

Specifications:

- Hardwire
- Input: 100-135VAC / 47-63HZ
- Output: 12V
- Current: 12.5A
- Power: 150W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: >85%
- Protection:
  Short circuit / Over load /  Over Current
- UL/CUL (E365202),
  CE, RoHS, SELV
- Safety Standards:
   EN61347-1 EN61347-2-13
   Withstand Voltage :
   I/P-O/P:3.75KVAC
   Isolation Resistance:
   I/P-O/P:100MΩ/500VDC/25℃/70%RH
-  EMC Emission:
   Compliance to EN55015,EN61000-3-2
   (up 50%load )
   (>50%load)
- EMC IMMUNITY:
  EN61000-4-2,3,4,5,6,11(Surge about 4KV)
- Product size: 226.5*77.5*47mm(L*W*H)

Lutron Dimmer Compatibility List

For TRIAC Dimming Drivers:
- DC 12V 1A 12W
-
DC 12V 5A 60W
-
DC 12V 8A 96W
-
DC 12V 8A 96W

Forward phase 100-130V

LUTRON
Model Dimming
Range
SCL-153PR-WH

2-100%

DVCL-153PR-WH 2-100%
DVWCL-153PH-LA 2-100%
CTCL-153PDH-LA 2-100%
TGCL-153PR-WH 2-100%

2017 - Ottawa LED. All Rights Reserved
