Surface-mount device (SMD) light emitting diode (LED) modules provide more luminosity and require lower power consumption than traditional light bulbs.

Features

Size:
SMD LED's are small and compact

Density:
The number of SMD's per meter

Standard - 30
Double - 60
High - 120

Low Power Consumption:
Generally, the voltage per SMD LED is 2-3.6V, current 0.02A-0.03A. LED's use a constant DC voltage and current. Power consumption equals just 1/8 of an incandescent light and 1/4 of traditional light.

Long Life Span:
Under proper current and voltage condition, the life span of SMD LED can reach 100,000 hrs. Compared with the other LED tubes (like Dip LED), the optical decay is reduce from 10% to 5% in 1000hrs. Produced by Automatic equipment, via heat emitting technical process, the life span of SMD LED is longer.

Color Rendering Index (CRI):
Also known as color accuracy, CRI is a measurement of how natural the light given off by a source looks in comparison to the sun. The highest CRI is 100 (like the sun).

CRI value is typically provided for white or warm white. Most LED strip lights have a very low CRI
(60-70).


SMD LED Modules are distinguished by the dimensions of the LED chips



Most Popular Sizes
3528 LED Chip 5050 LED Chip

SMD 3528

Consists of one light-emitting chip

Chip dimension:
35 x 28 mm

Power:
0.08W / SMD

SMD 5050


Consists of three light-emitting chips

Chip dimension:
50 x 50 mm

Power:
0.24W / SMD


Various Sizes

LED SMD types and sizes - Ottawa LED


5050 Double Density
(60 LED's per meter)

LED 5050 Cool White - Ottawa LED

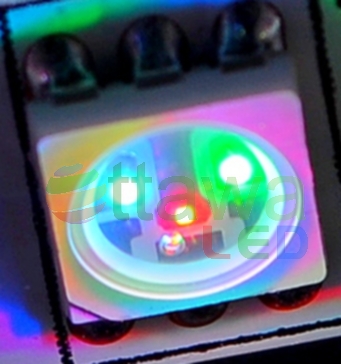

LED 5050 Warm White - Ottawa LED LED 5050 RGB - Ottawa LED 5050 RGB SMD - Ottawa LED
Cool White Warm White RGB

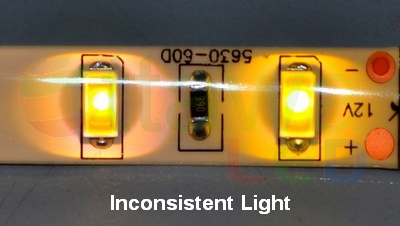

Quality LED Strips

- LED chip
- Chip package
- Solder and soldering
- Printed circuit board PCB
- Resister
- Design for heat dissipation
- Conductive material
- Copper material
- Copper thickness
- Copper layer

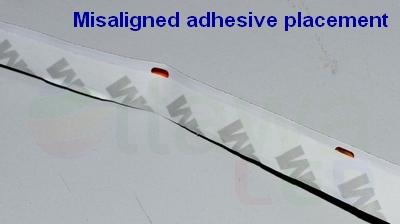

- Adhesive
- CRI
- Lumen per led

coming soon...




* Ingress Protection Rating (IP)

IP First number - Protection against solid objects.
IP Second number - Protection against liquids.

An IP65 rating is considered fully dust tight and has a waterproof rating of “water jets” which signifies protection up to “water projected by a nozzle (6.3mm) against enclosure from any direction shall have no harmful effects.”  In most areas, this level of protection is more than sufficient for outdoor use even through rain, splashes, etc.

IP67

6: Dust tight

No ingress of dust; complete protection against contact (dust tight). A vacuum must be applied. Test duration of up to 8 hours based on air flow.

7: Protected against: Immersion up to 1 m

Effective against: Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).

Test duration: 30 minutes
Tested with the lowest point of the enclosure 1000 mm below the surface of the water, or the highest point 150 mm below the surface, whichever is deeper.




IP65 IP67 IP68

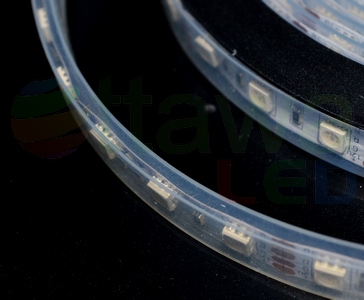

IP65 - LED Strip Coated - Ottawa LED IP67 - LED Strip in silicone sleeve - Ottawa LED IP68 - LED Strip Coated in silicone sleeve - Ottawa LED
Strip coated Strip in silicone
sleeve
Strip coated and
placed in silicone sleeve
(double protection)


3M™ Adhesive Transfer Tapes

9448A
300LSE
200MP

coming soon...

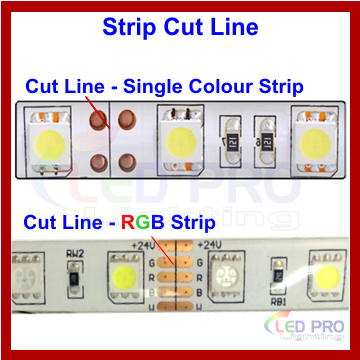

LED Strip cut line - Ottawa LED

Strip Cut Line




RGB 4 Pin connection - Ottawa LED

4 Pin Connection

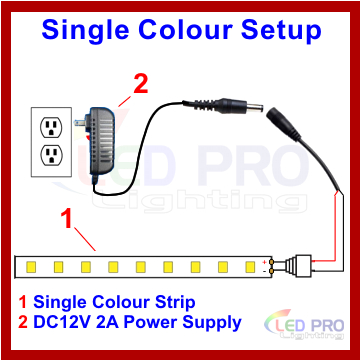

LED Strip - Single color connection - Ottawa LED

Connection - Single Colour Strip

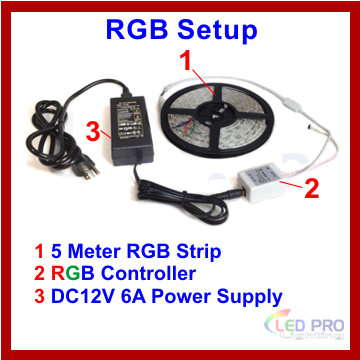

LED Strip - RGB connection - Ottawa LED

Connection - Multi Colour (RGB) Strip
