Premium LED Strip Lights

Product Information


Low voltage LED strip lights require a power supply. The type of LED and the total length of strip will determine the power supply capacity required.

Multi-color LED strip lights require a low voltage power supply and a controller to change colors and effect mode. There area various types of controllers to choose from.



Features:

- DC12V / 24V
- Dimmable
- Thick double layer copper
- Anti-static envelope packaging
- Cutable:
  every 3 LEDs (12V)
  every 6 LEDs (24V)
- Maintenance free
- Flexible ribbon for curving
  around bends
- Ultra-bright output,
  runs at low temperature
- Long life span

General Specifications:

- Length: 5 Meters (16.40ft)
  (unless stated otherwise)
- PCB: White, Double layer, 2oz copper
- Polarity Sensitive: Yes
- Emitting Direction: Top
- Beam Angle: 120 degree
- Ingress Protection Rating:
   IP20 / IP54 / IP65
- 3M  Double sided adhesive backing
- Compliance: cUL, CE, RoHS


To be installed in accordance with national and local electrical codes.
Use only with a listed certified Class 2 power supply


Color Rendering Index (CRI) >90
For professional level of color accuracy
 Higher the CRI value the higher colour rendering accuracy
Application: Photography, videography , food presentation,
art galleries, museums, jewellery display, make-up design, hospitals,
labs, and where color differential is task critical.

Clink image for larger view
LED Strip Thick double Layer Copper - Ottawa LED LED Strip 3M 300LSE Adhesive - Ottawa LED LED Strip Anti-Static Packaging - Ottawa LED

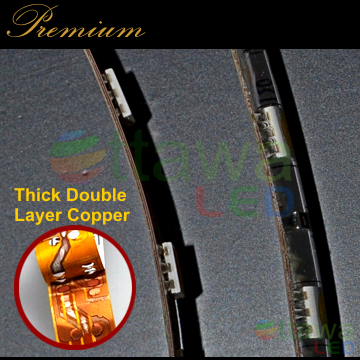

Thick double

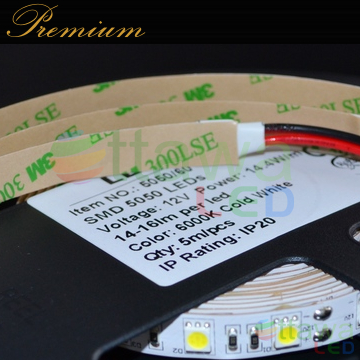

layer copper		 3M 300LSE

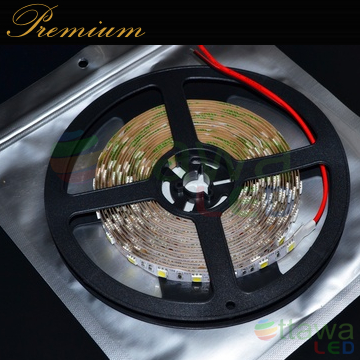

adhesive		 Anti-static
packaging
cUL listed, CE, RoHS Compliant LED Strips - Ottawa LED

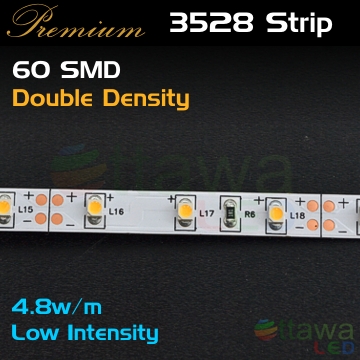

3528 Double Density
(60 LEDs / meter) Indoor

Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
3528 60 3000k
4000k
6000k		 12V IP20
Dry		 >90 4.8w 10mm 5
Meters		 420 $30

- Indoor use only

Low intensity lighting for under stairs in curios and book cases.

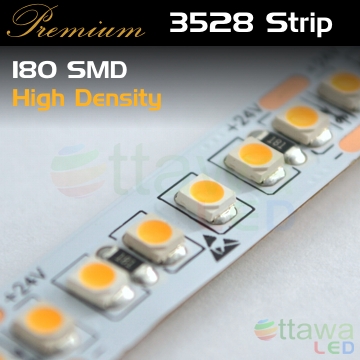

3528 High Density
(180 LEDs / meter)

Chip
Type		 Density/ Meter Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
3528 180 3000k
4000k
6000k		 24V IP20
Dry		 >90 14.4 10mm 5
Meters		 1100 $50

 - Indoor use only

Medium intensity for cove and decorative ambient lighting.

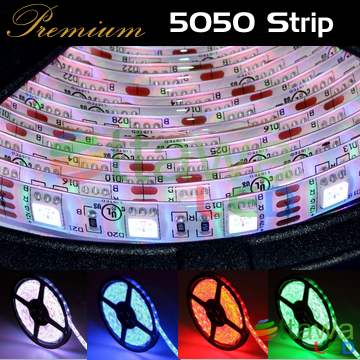

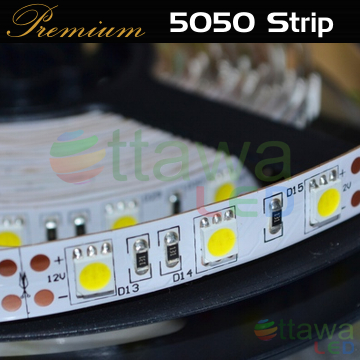

5050 Standard Density
(30 LEDs / meter) Indoor

LED Strip 5050 300 Warm White CRI>90 cUL Listed - Ottawa LED UL Strips Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
5050 30 3000k
6000k		 12V IP20
Dry		 >90 5.8w 10mm 5
Meters		 491 $45
RGB 2000-2500
MCD		 -

- Indoor use only

Low intensity for ambient lighting.

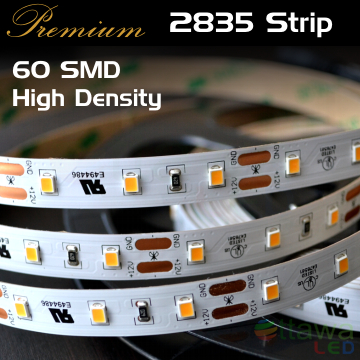

2835 Double Density
(60 LEDs / meter)

Chip
Type		 Density/ Meter Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
2835 60 3000k
4000k
6000k		 12V IP20
Dry		 >90 13w 10mm 5
Meters		 1000
1050
1100		 $45

 - Indoor use only

Medium intensity for decorative, under counter and light task lighting.

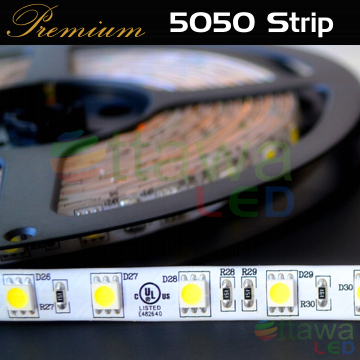

5050 Double Density
(60 LEDs / meter)

Chip
Type		 Density/ Meter Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
5050 60 3000k
4000k
6000k		 12V IP20
Dry		 >90 14.4w 10mm 5
Meters		 1195
1224
1224		 $60
RGB 2000-2500
MCD		 -

 - Indoor use only
 - Heat sink recommended

Medium intensity for decorative, under counter and light task lighting.


Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
5050 60 3000k
4000k
6000k		 12V IP65
Damp
 >90 14.4w 10mm 5
Meters		 1195
1224
1224		 $65
RGB 2000-2500
MCD		 -

 - Indoor, outdoor and damp location
 - Heat sink recommended
 - IP68 $85

Medium intensity for mood and colourful decorative lighting.

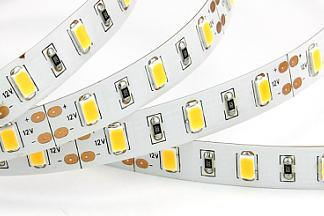

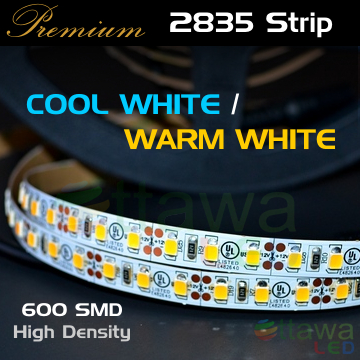

2835 High Density
(120 LEDs / meter) Indoor (Dotless)

LED Strip Light 2835 600 Warm White, Cool White, cUL Listed - Ottawa LED UL Strips

 Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
2835 120 3000k
4000k
6000k		 24V IP20
Dry		 >90 19.2w 10mm 5
Meters		 1500
1600
1700		 $60
IP67   $70

 - Indoor use only
 - Heat sink required - To be applied on metal surface for heat dissipation

High intensity lighting for task (under counter) and showcase.

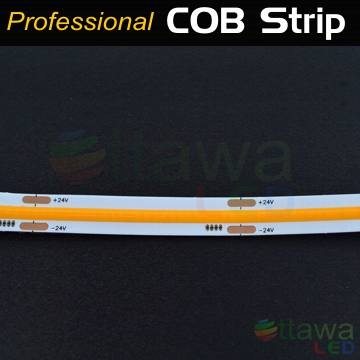

COB High Density
(480 LEDs / meter)  - 5M Lengths - Professional

Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
COB 480 3000k
4000k
6000k		 12V IP20
Dry		 >90 15w 10mm 5
Meters		 1440 $125

 - Indoor use only
 - Heat sink recommended

Medium intensity for decorative and light task lighting.
The dotless strip is excellent for areas where strip light may be visible or reflected.

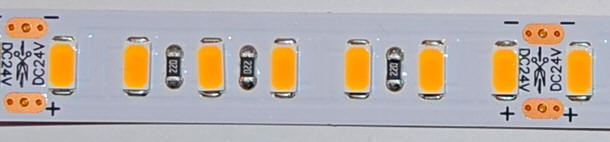

High Lumen & High Density
(72-120 LEDs / meter)  - 1M / 2.5M Lengths - Professional

Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
Epistar
5730		 72 3000k
6000k		 12V IP20
Dry		 >90 21w 12mm 2.5
 Meters		 1890 $40
 - Indoor use only
 - Heat sink required - To be applied on metal surface for heat dissipation

Chip
Type		 Density
/ Meter		 Color Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
Epistar
5730		 120 6500k 24V IP43
Dry		 >90 26w 12mm 5
Meters		 3000 $130
 - Indoor use only
 - Heat sink required - To be applied on metal surface for heat dissipation

High intensity task lighting.

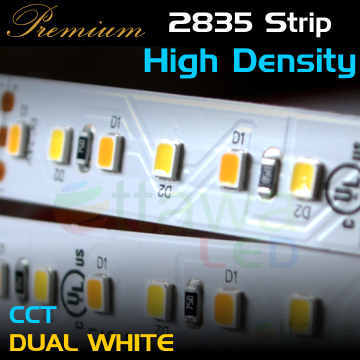

Dual CCT High Density
(120 LEDs / meter) Professional

Chip
Type		 Density
/ Meter		 Color/
Temp		 Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
Epistar
2835		 120 2700k
&
6500k		 24V IP43
Dry		 >90  19.2w 12mm 5
Meters		 1610 $125
 - Indoor use only
 - Heat sink required- To be applied on metal surface for heat dissipation

High intensity task lighting.

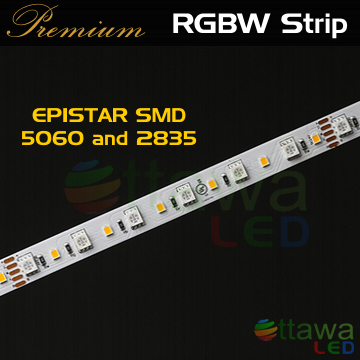

RGBW High Density
(96 LEDs / meter) Professional

Epistar RGBW 5060 2835 cUL Listed - OTTAWA LED UL Listed

 Chip
Type		 Density
/ Meter		 Color/
Temp		 Input
Voltage		 IP
Rating		 CRI Watts
/ Meter		 Width Length Lumens
/ Meter		 Price
Epistar
2835		 48 3000k
4000k
6000k		 24V IP43
Dry		 >90  20w 12mm 5
Meters		 White 700-870 $145
Epistar
5650		 48 RGB + 2000-2500
MCD		 *
 - Indoor use only
 - Heat sink required- To be applied on metal surface for heat dissipation

High intensity lighting for task and where colour combination required.

* Mix 410-530lm / Red 80-110lm / Green 280-350lm / Blue 50-70lm
