Home LED Power Supplies DC24V

The information contained on ottawaled.com is not intended to be used as professional advice. Always consult a professional electrician before working with electricity and regarding local building codes.

For greater efficiency and longer life choose a power supply that is 20% greater in capacity
than the total load. ie., If total load is 100 watts choose a 120 watt power supply.
(Volts x Amp = Watt) 12V 6A power supply = 72W


Quick view

Desktop Enclosure Outdoor Rated

1A 24W

1.5A 36W

2A 48W

3A 72W

4A 96W

$20.99

$24.99

$29.99

$39.99

$49.99

4A 96W

5A 120W

8A 200W

10A 250W

14A 350W

$39.99

$49.99

$64.99

$74.99

$84.99

4A 96W

5A 120W

6A 150W

8A 200W

10A 250W

$69.99

$79.99

$94.99

$114.99

$134.99

DC24V
 Constant Voltage (CV)

Desktop
- Indoor use only

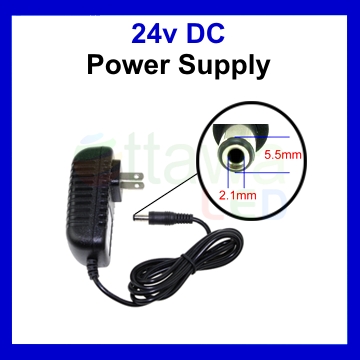

 		 DC 24V 1A 24W
- Indoor use only

$20.99
Specifications:

- Model: SMT-024-024VP
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 1A
- Power: 24W
- Protection:
  Overload, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL/cETL, CE, RoHS

back to Quick View
 		 DC 24V 1.5A 36W
- Indoor use only

$24.99
Specifications:

- Model: SMT-024-036VP
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 1.5A
- Power: 36W
- Protection:
  Overload, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL/cETL, CE, RoHS

back to Quick View
LED Driver Power Supply DC 24V 2A 48W cUL Listed - Ottawa LED
 		 DC 24V 2A 48W
- Indoor use only

$29.99
Specifications:

- Model: SMT-024-048VP
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 2A
- Power: 48W
- Protection:
  Overload, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL/cETL, CE, RoHS

back to Quick View

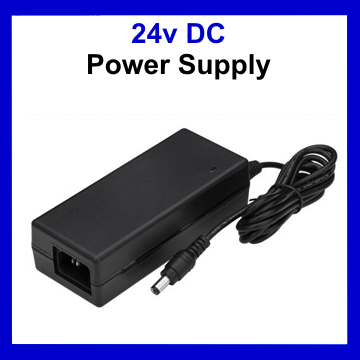

LED Driver Power Supply DC 24V 3A 72W cUL Listed - Ottawa LED
DC 24V 3A 72W
- Indoor use only

$39.99
Specifications:

- Model: SMT-024-072VP
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 3A
- Power: 72W
- Protection:
  Overload, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL/cETL, CE, RoHS

back to Quick View

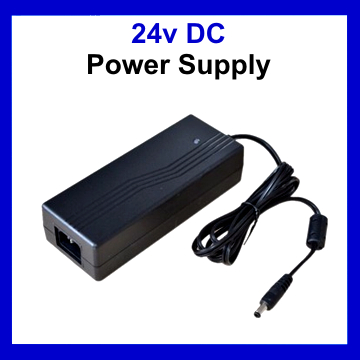

LED Driver Power Supply DC 24V 4A 100W cUL Listed - Ottawa LED
DC 24V 4.17A 96W
- Indoor use only

$49.99
Specifications:

- Model: SMT-024-100VP
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 4.17A
- Power: 100W
- Protection:
  Overload, short circuit
- 5.5 x 2.1 mm plug (center positive)
- Shell Material: ABS Plastic case
- cUL/cETL, CE, RoHS

back to Quick View

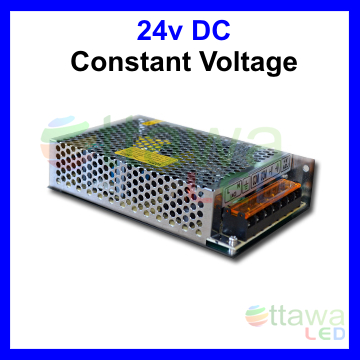

Industrial Aluminium Enclosure Hardwired
 - Indoor use only

This is a hardwired 120V power supply
and should only be installed
by a qualified professional.

 DC 24V 4A 96W
Constant Voltage Switching Power Supply
- Indoor use only		 $39.99
Specifications:

- Model: SMT-024-120SA
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 4A
- Current AC: 3.2@115VAC
- Power: 96W
- Cooling by free air convection
- Protection:
  Overload / Over voltage
- Product size: 160*88*34mm
- cETL, CE, RoHS

back to Quick View

This is a hardwired 120V power supply
and should only be installed
by a qualified professional.

 DC 24V 5A 120W
Constant Voltage Switching Power Supply
- Indoor use only		 $49.99
Specifications:

- Model: SMT-024-120SA
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 5A
- Current AC: 3.2@115VAC
- Power: 120W
- Cooling by free air convection
- Protection:
  Overload / Over voltage
- Product size: 160*88*34mm
- cETL, CE, RoHS

back to Quick View

This is a hardwired 120V power supply
and should only be installed
by a qualified professional.

 DC 24V 8.33A 200W
Constant Voltage Switching Power Supply
- Indoor use only		 $64.99
Specifications:

- Model: SMT-024-200SA
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 8.33A
- Power: 200W
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- Product size: 199*110*50mm
- cETL, CE, RoHS

back to Quick View

This is a hardwired 120V power supply
and should only be installed
by a qualified professional.

 DC 24V 10A 250W
Constant Voltage Switching Power Supply
- Indoor use only		 $74.99
Specifications:

- Model: SMT-024-250SA
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 10A
- Power: 250W
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- Product size: 199x150x50mm
- cETL, CE, RoHS

back to Quick View

This is a hardwired 120V power supply
and should only be installed
by a qualified professional.

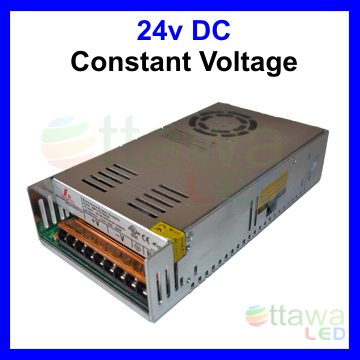

 DC 24V 14.58A 350W
Constant Voltage Switching Power Supply
- Indoor use only		 $84.99
Specifications:

- Model: SMT-024-350SA
- Input: 100~240VAC (50/60Hz)
- Output: 24V
- Current: 14.58A
- Power: 350W
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- Product size: 215x115x50mm
- cETL, CE, RoHS

back to Quick View

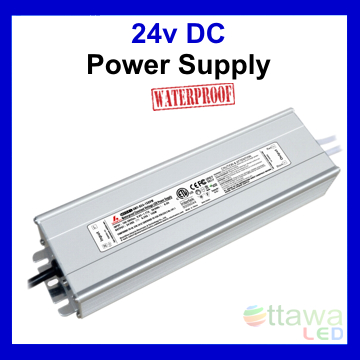

 Outdoor IP67
 - Indoor and outdoor use

DC 24V 4A 96W
Constant Voltage Driver		 $69.99
AC: 3-prong plug with 50cm wire
DC: 5.5 x 2.1 male connector with 20cm wire

Specifications:
- Model: SMT-024-096VW
- Input: AC 100~265v AC / 47-63HZ
- Output: 24V
- Current: 4A
- Power: 96W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 88%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- cUL/cETL, CE, RoHS
- Product size: 180x69x43mm

back to Quick View

DC 24V 5A 120W
Constant Voltage Driver		 $79.99
AC: 3-prong plug with 50cm wire
DC: 5.5 x 2.1 male connector with 20cm wire

Specifications:
- Model: SMT-024-120VW
- Input: AC 100~265v AC / 47-63HZ
- Output: 24V
- Current: 5A
- Power: 120W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 88%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- cUL/cETL, CE, RoHS
- Product size: 215x69x43mm

back to Quick View

DC 24V 6.25A 150W
Constant Voltage Driver		 $94.99
AC: 3-prong plug with 50cm wire
DC: 5.5 x 2.1 male connector with 20cm wire

Specifications:
- Model: SMT-024-150VW
- Input: AC 100~265v AC / 47-63HZ
- Output: 24V
- Current: 6.25A
- Power: 150W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 88%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- cUL/cETL, CE, RoHS
- Product size: 240x71x45mm

back to Quick View

DC 24V 8.33A 200W
Constant Voltage Driver		 $114.99
AC: 3-prong plug with 50cm wire
DC: 5.5 x 2.1 male connector with 20cm wire

Specifications:

- Model: SMT-024-200VW
- Input: AC 100~265v AC / 47-63HZ
- Output: 24V
- Current: 8.33A
- Power: 200W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 88%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- cUL/cETL, CE, RoHS
- Product size: 240x70x48mm

back to Quick View

DC 24V 10A 250W
Constant Voltage Driver		 $134.99
AC: 3-prong plug with 50cm wire
DC: 5.5 x 2.1 male connector with 20cm wire

Specifications:

- Model: SMT-024-250VW
- Input: AC 100~265v AC / 47-63HZ
- Output: 24V
- Current: 10.4A
- Power: 250W
- Ingress Protection (Water Resistant): IP67 *
  For indoor or outdoor installations
- Efficiency: 91%
- Cooling by free air convection
- Protection:
  Short circuit / Overload / Over temperature
- cUL/cETL, CE, RoHS
- Product size: 235x72x45mm

back to Quick View
